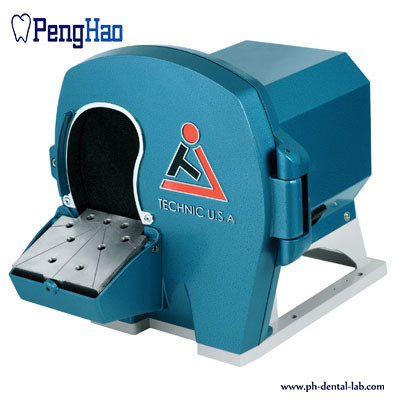

Dental Model Trimmer With Diamond Disc of Lab Product

Dental Model Trimmer With Diamond Disc of Lab Product

Dental Model Trimmer With Diamond Disc of Lab Product

Product Details:

Place of Origin: China
Brand Name: PH
Certification: CE, ISO9001
Model Number: PHE03

Payment & Shipping Terms:

Minimum Order Quantity: 5sets
Price: 130-165dollars per piece
Packaging Details: safe and strong carton packing
Delivery Time: 5-8 working days after receiving your payment
Payment Terms: Western Union, MoneyGram, Western Union, T/T
Contact Now
Detailed Product Description
Material: Metal Sheet Type: Cleaning & Filling Teeth Equip
Voltage: 220v Or 110v Weight: 20kg
Instrument Classific: Class I Category: Dental Lab Equipment
Color: White Original Place: Henan
Dimension: 44*35*35mm Power: 550w
Rotational: 2800rpm

Dental Model Trimmer With Diamond Disc of Lab Product

Description



Model Trimmer is widely used in restorative dentistry.It is a necessary tool for trimming plaster models,This machine is made of rust-proof all-cast aluminum.The angle can be adjusted between 0-20° which enables the users to achieve perfect trimming quality.



Specification



Power supply voltage

AC220v/50HZ ±10%

Power

550W

Water pressure

0.5-2kg

Rotation

280000rpm

Weight

20kg



Diagram



1.Motor Support



2.Motor



3.Abrasive disc



4.Protective case



5.Tightening screws of the abrasive disc



6.Working platform



7.Adjusting screws of the working platform



8.Power switch



Instruction



1.Unpack the package,check if all the accessories are inside.Read this manual carefully before using.



2.Fix the moder trimmer to bench with one screw on each leg to avoid shaking.



3.The tighten the water pipe and the joint tightly to avoid breaking off,which might cause water splashes and damage the motor.



4.Tighten all the screws on the machine to avoid shaking.



5.Turn on the power,notice if there any noise in the motor and check if the abrasive disc,change the water pressure if the result is not good.



6.Input water,



7.The trimmer can be adjusted which makes it easy and convenient .The angles can be adjusted by more than 30°,the trimmer angle can be with 75°-105°.



Caution



1.Water pressure ≤ 2kg/cm



2.Do not use the machine without water,otherwise it will damage the abrasive disc
